Double Layer CTP Plate
+86-18137889531
8618137889531
sales@aluhc.com
Inquiry
Download PDF

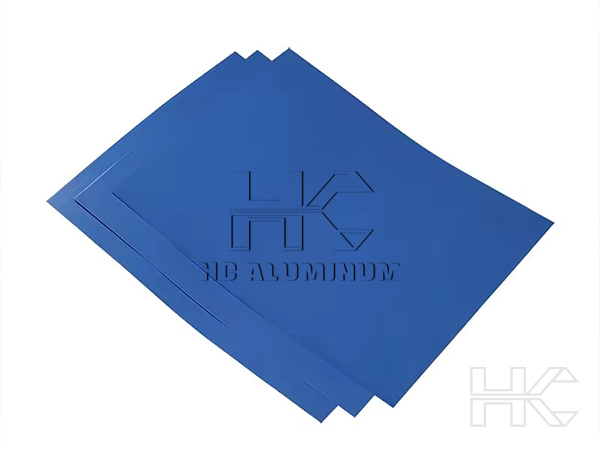

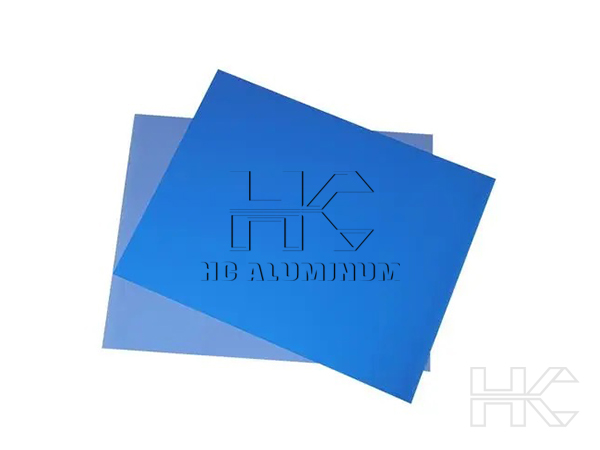

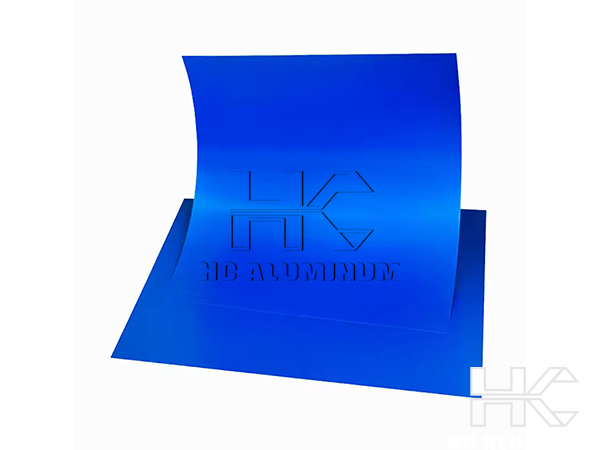

Double layer CTP plate is a thermal plate designed for extraordinary performance in prepress and pressroom. With the stable and durable performance, CTP plate double layer is applicable to normal ink and resistant to UV-Ink printing.

HC double layer thermal CTP plate has very high sensitivity enables maximum productivity thus supporting very high plate throughput, in some situations, extending thermal laser life.

The thermal CTP plates are not only a superior combination of quality, stability, productivity, and consistency but also best for both short and long run length in the high-quality commercial press.

The Specification of Double Layer CTP Plates:

Product Type

Double Layer CTP Plate

Compatible Platesetter

All the dominant platesetters

Plate Thickness

0.15/0.20/0.25/0.30/0.40mm

Maximum Coil Width

1350mm

Spectral Sensitivity

830nm

Exposure Energy

110-130mj/c㎡

Developing Condition:

24-28℃, 25-35S

Safe-light

2 hours under white light

Resolution

1-99% at 200lpi

Run Length

50,000-100,000copies(Unbaked),100,000-200,000copies(Baked)

*Run Length varies with printing conditions and imaging content, including paper,ink.

Shelf Life

18 Months

Storage Conditions

Temperature 10-25℃, 40%-60% humidity

Keep away from sunlight and humidity. Pack height<1.5 meters



The Features of Double Layer CTP Plates:

Easy-to-use;

Able to work under white light and no need to pre-heating;

Steady Quality, Good Compatibility, Excellent dot reappearance, Long Run-length;

Close-grained Oxidation Layer –Outstanding dot reproduction, high resolution;

Excellent Hydrophilicity- keep ink-water balance optimally;

Unique Photosensitive Coating-High and fast Sensitivity.

The Application of Double Layer CTP Plates:

HC CTP printing plate can be used for offset/lithographic commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.

The Packaging of Double Layer CTP Plates:

Two coated sides are placed facing each other, separated by neutral backing paper in the middle, the outside is covered with plastic lined black kraft paper and placed in the carton box,each carton box is loaded around 50 -100 pieces. Loaded carton boxes on the wooden pallet protected with wooden frames or cardboard. Finally, wrap it with kraft paper or plastic film and tighten by plastic tapes.

Or Packed according to customer requirements.


◉ FAQ

Q: Can I get samples before order?
A: Yes, of course. We can offer free samples.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory ;
Q: How can I get a quotation from you?
A: You can leave us message or send us by email , and we will reply every message and email in time or we may talk on line.
Q: What product information do I need to provide?
A: You need to provide the thickness, width, length or any other detailes you want to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our plates are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely.
Q: How do we trust your company ?
A: We specialise in steel business for years. You are welcome to investigate in any ways.
